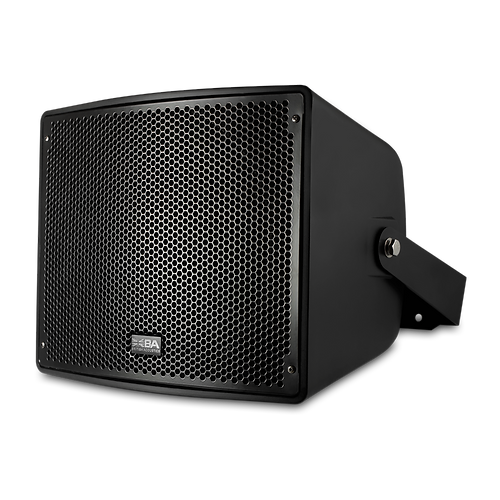

VX 110TW
All Weather 10" Co-axial Loudspeaker


Product at a Glance
- 10" LF transducer with Kevlar-reinforced cone
- 70 Hz - 18 kHz frequency response.
- 300 Watt 70V/100V multi-tap low saturation transformer or Direct 8 Ohms low-impedance drive
- Weather-resistant for outdoor applications (IP 66)
- Extraordinary intelligibility for speech applications
CRAFTSMANSHIP
Painstakingly Perfect Production

Over the years, craftsmanship has been closely linked with small scale individualistic production. Back in 1972, we started the same way. As we grew in scale & size, it was difficult to build each speaker individually, but quality control was of utmost importance as so switching to a general assembly line was simply not an option. So we wrote up a code, one quite like enigma, to ensure quality control. We selected the right partners, got the right tools, and in cases where those weren't available, we invented them. We grew slower than most as our aim was to last longer than most.
TECHNICAL SPECIFICATIONS
ACOUSTIC
Frequency Response (-3 dB)
80 Hz - 20 kHz
Frequency Range (-10 dB)
55 Hz - 20 kHz
Rated Power
400W Continuous, 1600W Peak
Maximum SPL
128 dB
Sensitivity
96 dB
AESTHETIC
Nominal Impedance
8 Ohms or 100/70 V
Enclosure
IPX 66 rated ABS Enclosure
Coverage Pattern
90° x 90°
Grill
Rust-Free, Zinc Treated Grill - Powder Coated
LF Driver
Hyper Resistant 10" Aquarepel Co-axial Driver, 2.5" VC - Ferrite
Finish
Sesimic Black Finish
HF Driver
2" exit compression driver, 2" VC
Mounting System
Installation Yoke
Transformer Taps
100W, 50W, 25W, 10W - 100 / 70 V
DIMENSIONS
Height
13.5"
Width
15"
Depth
12"
Weight
19 Kgs
