Delta D3 LA

Flagship Powered 3-Way Dual 8" Line Array
bg copy.jpg

Product at a Glance

The British Acoustics Delta D3 LA is a compact and versatile 3-way dual 8" line array speaker system, designed for small to mid-sized venues. As the younger twin of the Delta D2 LA, the D3 LA delivers the same exceptional clarity and performance while catering to applications requiring a more streamlined,space-conscious solution.With its lightweight design and impressive SPL-to-size ratio, the D3 LA is a powerful option for intimate performances, corporate events, houses of worship, and scalable configurations. Manufactured in Europe with advanced technology, it combines precision engineering and robust construction, ensuring consistent performance and durability in demanding environments.

The D3 LA is equipped with British Acoustics’ sophisticated software tools for comprehensive system design and management. The Delta Array Predictor enables precise sound coverage planning tailored to any venue, while the Delta Audio Controller (DAC) offers intuitive, real-time control for seamless integration into complex setups.Tailored for professionals who prioritize portability and flexibility, the Delta D3 LA excels as a standalone system or as part of a larger Delta configuration. Its compact form factor, coupled with its high-performance capabilities, makes it an ideal choice for achieving superior sound in smaller spaces.The Delta D3 LA embodies the hallmark precision and innovation of British Acoustics, providing a reliable, high-quality solution for small to mid-sized sound reinforcement needs.

CRAFTSMANSHIP

Painstakingly Perfect Production

Over the years, craftsmanship has been closely linked with small scale individualistic production. Back in 1972, we started the same way. As we grew in scale & size, it was difficult to build each speaker individually, but quality control was of utmost importance as so switching to a general assembly line was simply not an option. So we wrote up a code, one quite like enigma, to ensure quality control. We selected the right partners, got the right tools, and in cases where those weren't available, we invented them. We grew slower than most as our aim was to last longer than most.

TECHNICAL SPECIFICATIONS

ACOUSTICAL SPECIFICATIONS

• Freq. Response (-3 dB) : 65 Hz - 22 kHz
• Freq. Range (-10 dB) : 57Hz - 22 kHz
• H Dispersion : 100° (- 6 dB)
• V Dispersion : 10° array dependent
• Crossover : Digital: FIR filter 550 Hz
Passive : 6.3 KHz
• Max Output : Cont. - 135dB, Peak -
141dB

SYSTEM SPECIFICATIONS

• Recommended Subwoofers : See Systems
Chart for compatible subwoofers
• Recommended System Control : Delta Audio Controller (DAC) & Delta Array Predictor
(DAP)

LF TRANSDUCER

• 813K - 8” Low Frequency Drivers
• Two drivers connected in parallel
• 400W AES Power, 1600W Peak
• 2.5” Duo Copper Voice Coil - Neodymium Magnet
• Malt Cross Cooling Technology
• FEA optimized neodymium magnet circuit
• Fortex™ Weather Resistant Cones

HF TRANSDUCER

• A45T08 - Ultra-light 8”dual diaphragm coaxial planar wave drivers coaxial planar wave drivers.
• MF : 150W AES Power
• HF : 80W AES Power
• 112 dB Sensitivity
• Improved heat dissipation

AMPLIFIER & DSP
SPECIFICATIONS

• 3000W Class-D Amplifier
• Dual Stage Power Factor Correction
• Exceptional Amplifier Efficiency
• Thermal, short-circuit and overload
protections
• 64 bit/96KHz processor, Digital FIR filters
• 32 bit/96KHZ AD/DA converters
• 3” LCD Touch user interface
• Dual Ethercon Connectors to connect with
Delta Audio Controller
• AES/EBU XLR In/Out, Analog XLR In/Out
• 16A Neutrik Truecon Power In/Out

AESTHETIC SPECIFICATIONS

• British Acoustics Signature Umber Brown Tone
• Non Reflective, Matte Black Grills
• Available in a RAL code of your choice (24 nos, minimum)

OPERATING PARAMETERS

• Operating positions: Flowing or Ground stacked with the correct Array Frame or Accessory
• Maximum permitted ambient temperature (Ta max) 55° C (124° F)
• Minimum permitted ambient temperature (Ta min): -2° C (28.4° F)

IP SPECIFICATIONS

• IP 43 - Standard protection against dust & splashes

HOUSING

• Marine Birchply Enclosure
• Granular Scratch Free Polyurea Paint
• Perforated Black, Pressed Steel Grills
• Integrated Handles on Either Side
• 3-Point Easy-Fly™ Rigging Mechanism
• 0-10° Splay Angles
• Tethered Quick-lock Pins
• Max. of 16 units in one hang with the Acc D2 Max

OPTIONAL ACCESSORIES

• See system chart for the System Accessories

SIZE

• Product : 254 x 600 x 480 mm (H x W x D)
• Product : 10 x 23.6 x 18.8 inch (H x W x D)
• Packed individually

WEIGHT

• Net : 27 Kgs
• Net : 59.5 Lbs

SHIPPING INFORMATION

• Carton Size
329 x 675 x 555 mm (H x W x D)
12.9 x 26.5 x 21.8 inch (H x W x D)
• Gross Weight : 28.35 Kgs / 62.50 Lbs
• Packed : Individually

DOWNLOADS CENTRE

Datasheet

CAD Files

GLL

Software

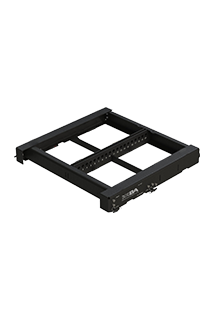

ACCESSORIES
